BSD Yamaha R6 2018 YEC kit, Left side 5 way handlebar switch, TC+ , MAP, PIT, RAIN , TC-

BSD Yamaha R6 2018 YEC kit, Left side 5 way handlebar switch, TC+ , MAP, PIT, RAIN , TC-

Store / Shop by Category / Handle bar buttons / Bike Sport Developments / BSD: Yamaha / YZF R6 2017>
£265.00
In stock
Product Details

BSD manufacture switchgear used in the highest levels of racing - the switches are precision machined from billet aluminium for high impact resistance and electrical integrity, and all buttons & switches are IP67, meaning they can be literally submerged in water and still operate correctly - these are the highest quality switchgear assemblies on the market.

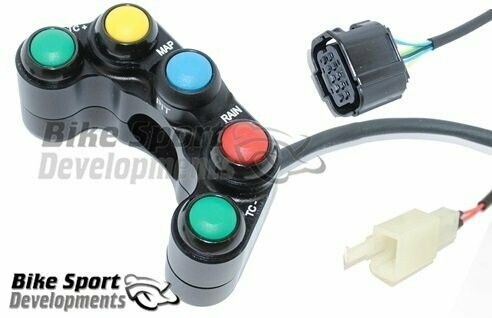

5 way race bike handlebar switch - Yamaha R6 2018 with YEC kit ECU and wiring, left side

This switch is intended to replace the standard right hand handlebar switches on a Yamaha R6 fitted with the 2018 YEC kit ECU and wiring loom.

TC + , Momentary press changes TC level

MAP , Push IN for MAP 2 (IN position), Push again for MAP 1 (out position)
PIT - Push and hold in for pit speed limiter
RAIN , Push IN for rear light ON (IN position), Push again to turn OFF (out position)
TC - , Momentary press changes TC level
The compact aluminium assembly encompasses 5 sealed switches featuring gold plated contacts and IP67 sealing for longer life and greater crash protection.

No modification of the bike wiring is necessary, this kit plugs directly into the existing wiring connectors

Width at centre - 13.5mm
Cable length - Same as the standard switch
Coating - Black anodise
Made in the UK
Kit comprises:
5 x sealed push-button switches
Pre-wired connector to suit the standard bike wiring
retaining screws
Separate clutch switch wiring (may be removed)
