BSD Yamaha R1 2020 - 5 way Brake pump mount - Standard and kit systems - right handlebar switch + Grip housing - Stop/run Up Select Down Start

Yamaha R1 2020 - 5 way 'Type C' Brake pump mount for standard and YEC kit systems and our KT160 billet aluminium twist grip sensor housing.

Download the product Installation manual

Download the product date sheet here : Datasheet

---

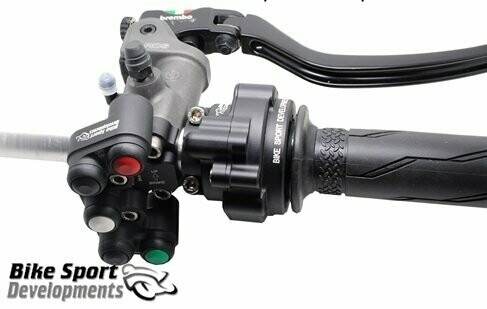

Right handlebar switch assembly - Stop/run Up Select Down Start

The 2020 bike features a 1 piece switch and twist grip sensor housing which is over-large and easy to crash damage. This new assembly features one of our 'plug and play' brake mounted switch assemblies with an all new aluminium billet housing for the twist grip sensor. No re-programming is needed, just fit the parts and plug them in.

The twist grip may also be rotated on the bar to achieve optimum component clearance. Housing is available separately both as a replacement part and for use with other race switch products.

---

Right side for direct mounting as part of the brake pump assembly, this replaces the standard brake clamp

Designs are available for:

• 32mm In-line bolts, use clamp type BR-A (to suit a standard brake)
• 30mm offset bolts, use clamp type BR-B
• 32mm in-line bolts with left offset for Nissin and Brembo RC brake pumps, use clamp type BR-N
• 30mm in-line bolts for Accosato brake pump , use clamp type BR-F

Specify clamp type at the time of ordering. One clamp is supplied free of charge per switch.

Alternative clamps can be purchased separately, no need to replace the switch assembly.

Download the product date sheet here : Datasheet

This switch is intended to replace the standard right hand handlebar switch to provide simple Up, Down and Select push buttons replacing the scroll wheel using an intelligent control circuit board embedded within the switch body. No user programming is required, just plug it in and use it. Full data sheet download available on next page tab.
