BSD Yamaha R1 2015> 3 button bar clamp mount - Standard ECU - left handlebar switch - Up Select Down

BSD Yamaha R1 2015> 3 button bar clamp mount - Standard ECU - left handlebar switch - Up Select Down

Store / Shop by Category / Handle bar buttons / Bike Sport Developments / BSD: Yamaha / YZF R1 15-19
£205.00
Clutch perch type
Please choose
In stock
Product Details

BSD manufacture switchgear used in the highest levels of racing - the switches are precision machined from billet aluminium for high impact resistance and electrical integrity, and all buttons & switches are IP67, meaning they can be literally submerged in water and still operate correctly - these are the highest quality switchgear assemblies on the market.

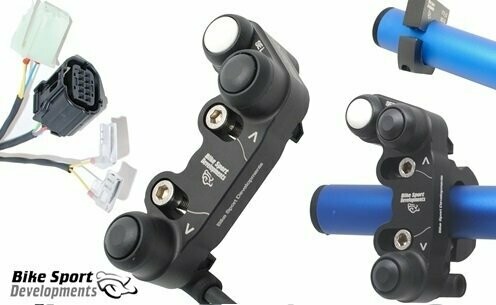

Yamaha R1 2015 onward - 3 way 'Type C' bar clamp mount - Standard ECU - left handlebar switch - Up Select Down
This switch is intended to replace the standard left hand handlebar switch on bikes with the standard ECU and wiring and features the following controls. Full data sheet download available on next page tab.
UP function
Select (mode) function)
DOWN function

Type 'C' switches mount directly onto the handlebar using a generic 22 mm clamp BR-G. This angles the switch body towards the rider, saves space on the bar and allows full freedom of adjustment.

The clamp is supplied free with each switch, but you are free to choose an alternative clamp if you have an aftermarket clutch post which has 2 bolts. This can be chosen at the time of ordering at no extra cost.

We have clamps for:

CL-A 32mm in-line bolt spacing
CL-B 30mm offset bolt spacing
CL-F 30mm in-line as found on Accosato brake parts
CL-K 36mm in-line spacing
BR-G 22mm generic bar clamp (supplied as standard)

Clamps may be bought separately should you change this part at a future time, there is no need to replace the switch assembly

Perfect for saving space on the handlebar yet retaining left / right adjustment via slotted bolt holes.

Search for alternative mounting clamps here

Construction / Notes:

Billet aluminium body
IP 67 waterproof switches with gold plated contacts
Raychem type 55 wire and DR25 sleeving
Plug and play wiring
Greater crash protection and electrical integrity
May be repaired after crash damage
Designed and made in the UK by Bike Sport Developments
Custom designs are our speciality, so feel free to ask and typically at no extra cost.
