BSD Suzuki GSXR600/750/1000 up to 2016 - 4 way Brake clamp mount - race bike RHS - Stop/Run Mode Up, Mode Down , Start, Master cylinder type: 32mm in-line bolts - standard master cylinder
+2

BSD Suzuki GSXR600/750/1000 up to 2016 - 4 way Brake clamp mount - race bike RHS - Stop/Run Mode Up, Mode Down , Start

Store / Shop by Category / Handle bar buttons / Bike Sport Developments / BSD: Suzuki / GSXR1000 06-16
£235.00
Master cylinder type
Please choose
In stock
Product Details

BSD manufacture switchgear used in the highest levels of racing - the switches are precision machined from billet aluminium for high impact resistance and electrical integrity, and all buttons & switches are IP67, meaning they can be literally submerged in water and still operate correctly - these are the highest quality switchgear assemblies on the market.

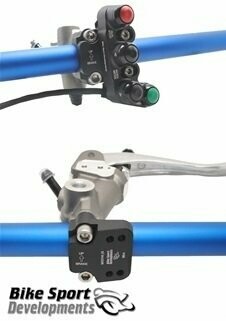

Suzuki GSXR600_750_1000 up to 2016 - 4 way 'Type C' bar clamp mount
Race bike right handlebar switch assembly

Stop/Run Mode Up, Mode Down , Start

This switch may be used with the standard or KIT ECU and wiring systems and is a direct 'plug n play' replacement for the standard Stop/Run and Start switch.

Functions:

Stop / Run
Mode UP
Mode down
Start

Type 'C' switches mount directly onto the brake pump body using the two original clamp screws and a new dedicated clamp, this provides greater clearance for standard and aftermarket throttle cable assemblies

The BR-A clamp is supplied free with each switch, with the default clamp matching the bolt pattern of the standard brake pump (master cylinder), but you are free to choose an alternative clamp at the time of ordering at no extra cost.

We have clamps for:

BR-A 32mm in-line bolt spacing
BR-B 30mm offset bolt spacing - Brembo XR (GP)
BR-N 32mm in-line with a left offset for short brake levers (typically Nissin or Brembo RC)
BR-F 30mm in-line as found on Accosato brake parts
BR-G Generic clamp for any 21.8 > 22.2 mm handlebar (does not mount on the brake pump)

Unless otherwise specified we will supply the BR-A clamp for this application.

Clamps may be bought separately should you change this part at a future time, there is no need to replace the switch assembly

Perfect for saving space on the handlebar yet retaining left / right adjustment via slotted bolt holes.

Construction / Notes:

Billet aluminium body
IP 67 waterproof switches with gold plated contacts
Raychem type 55 wire and DR25 sleeving
Plug and play wiring
Greater crash protection and electrical integrity
May be repaired after crash damage
Designed and made in the UK by Bike Sport Developments
Custom designs are our speciality, so feel free to ask and typically at no extra cost.
