BSD Kawasaki ZX6R 2019> - 4 buttons, clutch post mount - All ECU types - race bike LHS - Up Select Down Pit
+2

BSD Kawasaki ZX6R 2019> - 4 buttons, clutch post mount - All ECU types - race bike LHS - Up Select Down Pit

Store / Shop by Category / Handle bar buttons / Bike Sport Developments / BSD: Kawasaki / ZX6R 2019>
£235.00
Clutch perch type
Please choose
In stock
Product Details

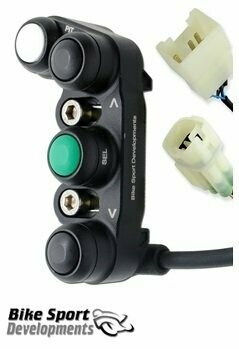

BSD manufacture switchgear used in the highest levels of racing - the switches are precision machined from billet aluminium for high impact resistance and electrical integrity, and all buttons & switches are IP67, meaning they can be literally submerged in water and still operate correctly - these are the highest quality switchgear assemblies on the market.

Kawasaki ZX6R 2019 onwards - 3 way 'Type C' Clutch post mount - All ECU types
Race bike left handlebar switch assembly - Pit Up Select Down
Download the product date sheet here : Datasheet
This switch is designed for use on race or track bikes that no longer need the lights, horn or turn signal controls.

For the pit speed switch we provide 2 loose wires for the user to connect as necessary.

Functions:

Pit Speed

Up
Select
Down

Type 'C' switches mount directly onto the clutch post body using the two original clamp screws and a new dedicated clamp.

The CL-K 36mm clamp is supplied free with each switch, with the default clamp matching the bolt pattern of the standard clutch, but you are free to choose an alternative clamp at the time of ordering at no extra cost.

We have clamps for:

CL-K 36mm in-line spacing (Kawasaki standard)
CL-A 32mm in-line bolt spacing
CL-B 30mm offset bolt spacing
CL-F 30mm in-line as found on Accosato brake parts
BR-G 22mm generic bar clamp

Unless otherwise specified we will supply the CR-K clamp for this application.

Clamps may be bought separately should you change this part at a future time, there is no need to replace the switch assembly

Perfect for saving space on the handlebar yet retaining left / right adjustment via slotted bolt holes.

Construction / Notes:

Billet aluminium body
IP 67 waterproof switches with gold plated contacts
Raychem type 55 wire and DR25 sleeving
Plug and play wiring
Greater crash protection and electrical integrity
May be repaired after crash damage
Designed and made in the UK by Bike Sport Developments
Custom designs are our speciality, so feel free to ask and typically at no extra cost.
