BSD Honda CBR1000RR 2020 onwards, left and right race switch set, Master cylinder type: 32mm in-line bolts - standard master cylinder
+2

BSD Honda CBR1000RR 2020 onwards, left and right race switch set

Store / Shop by Category / Handle bar buttons / Bike Sport Developments / BSD: Honda / CBR1000RR 2020>
£645.00
Master cylinder type
Please choose
In stock
Product Details
Make: Honda
Model: CBR1000RR 2020

BSD manufacture switchgear used in the highest levels of racing - the switches are precision machined from billet aluminium for high impact resistance and electrical integrity, and all buttons & switches are IP67, meaning they can be literally submerged in water and still operate correctly - these are the highest quality switchgear assemblies on the market.

Honda CBR1000 RR - HRC 2020 onwards.
Left and right race switch set
Kit comprises
left side switch BD-SW-7BC-40
Right side brake mount switch - BD-SW-6BC-40
Electronic control module / bike interface

These left and right switch assemblies are designed for use on race/track bikes fitted with the HRC kit. For bikes with standard road bike ECU and wiring systems please see our other products.

All are 100% 'plug n play' with the HRC wiring to provide the following functions, all of which tie in with HRC manual functions.

Left side switch assembly

Pit speed limiter ON
Pit speed limiter OFF
Mode A - Up
Mode A - Down
Mode B - Up
Mode B - Down
Left navigate - Function
Right side switch assembly
Right navigate - Function
Slick / Wet tyre
Launch
Stop /Run
Start
Rain light ***

*** Rain light switch provides the switch only via 2 wires, the user must then integrate with their own rain light and the spare power supply on the HRC wiring.

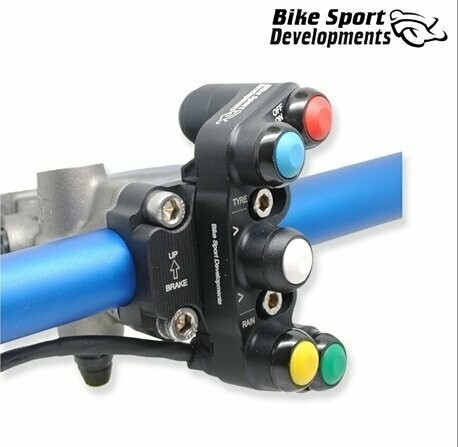

Type 'C' switches mount directly onto the brake pump body using the two original clamp screws and a new dedicated clamp.

The clamp is supplied free with each switch, with the default clamp matching the bolt pattern of the standard brake pump (master cylinder), but you are free to choose an alternative clamp at the time of ordering at no extra cost.

We have clamps for:

BR-A 32mm in-line bolt spacing - Standard
BR-B 30mm offset bolt spacing
BR-N 32mm in-line with a left offset for short brake levers typically Brembo RC , RCS
BR-F 30mm in-line as found on Accosato brake parts
BR-G Generic clamp for any 21.8 > 22.2 mm handlebar (does not mount on the brake pump
BR-J 32mm offset bolt spacing - Beringer

Unless otherwise specified we will supply the BR-A clamp for this application.

Clamps may be bought separately should you change this part at a future time, there is no need to replace the switch assembly

Perfect for saving space on the handlebar yet retaining left / right adjustment via slotted bolt holes.

The clutch side switch uses our generic 32mm handlebar clamp BR-G

Both the left and right switches are connected to the bike via our dedicated interface module. This is located under the tank cover near the ECU.

Switches and clamps may be bought separately for replacement due to crash damage.

Construction / Notes:

Billet aluminium body
IP 67 waterproof switches with gold plated contacts
Raychem type 55 wire and DR25 sleeving
Plug and play wiring
Greater crash protection and electrical integrity
Switch may be replaced separately in the event of a crash
Designed and made in the UK by Bike Sport Developments

Custom designs are our speciality, so feel free to ask and typically at no extra cost.
